MRCOOL Universal 24K BTU R-454B Heat Pump System (2 Ton)

MRCOOL Universal 24K BTU R-454B Heat Pump System

The MRCOOL Universal 24K BTU R-454B Heat Pump System is a complete 2-ton heating and cooling solution designed for efficient whole-home comfort. This system includes a matching Universal Series Air Handler and Universal Series DC Inverter Heat Pump Condenser, giving homeowners dependable performance for both winter heating and summer cooling.

Built with advanced DC inverter technology, the outdoor condenser adjusts output to help maintain consistent indoor comfort while reducing energy use. The matching multi-position air handler supports upflow, downflow, and horizontal installation, making it flexible for attics, closets, crawlspaces, and other common HVAC locations.

This system is compatible with the MRCOOL NO-VAC® Quick Connect® line set sold separately, which helps simplify installation by eliminating the need for vacuuming or flaring. Optional Universal Series heat kits are also available for added backup heat in colder climates.

Included

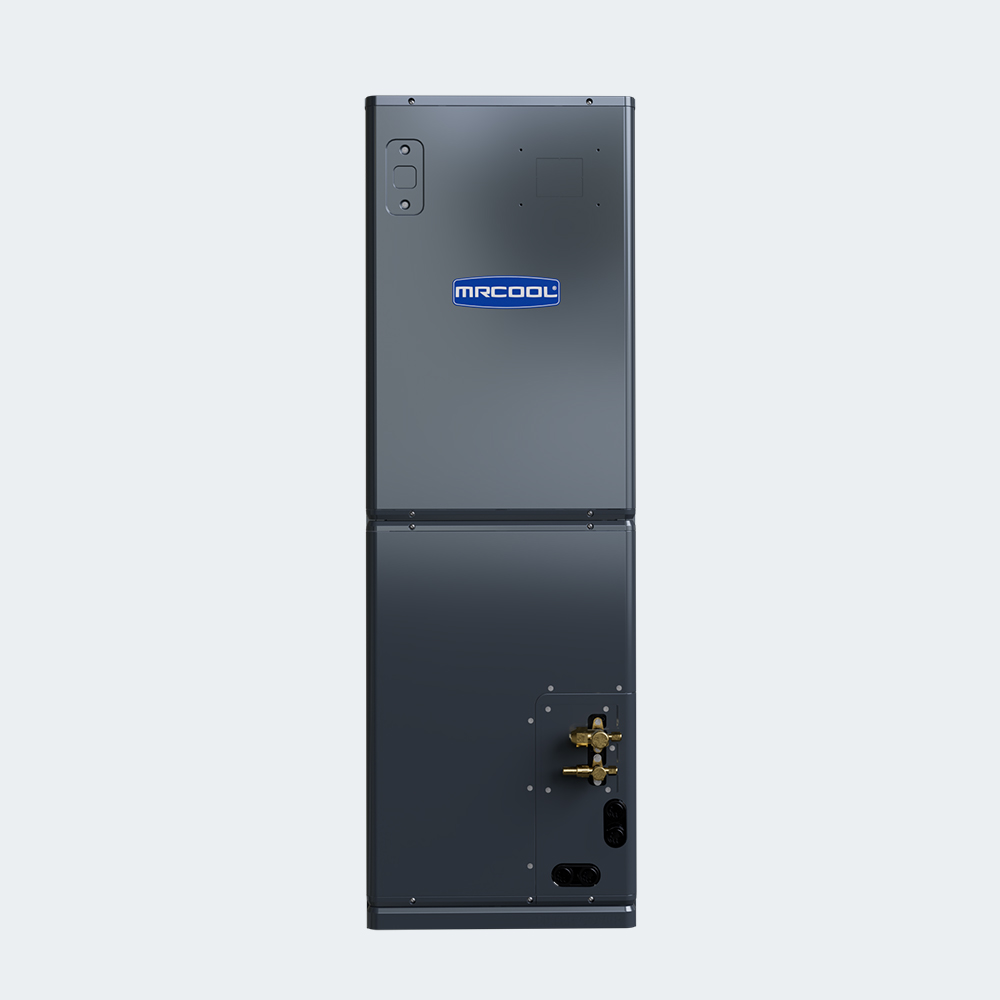

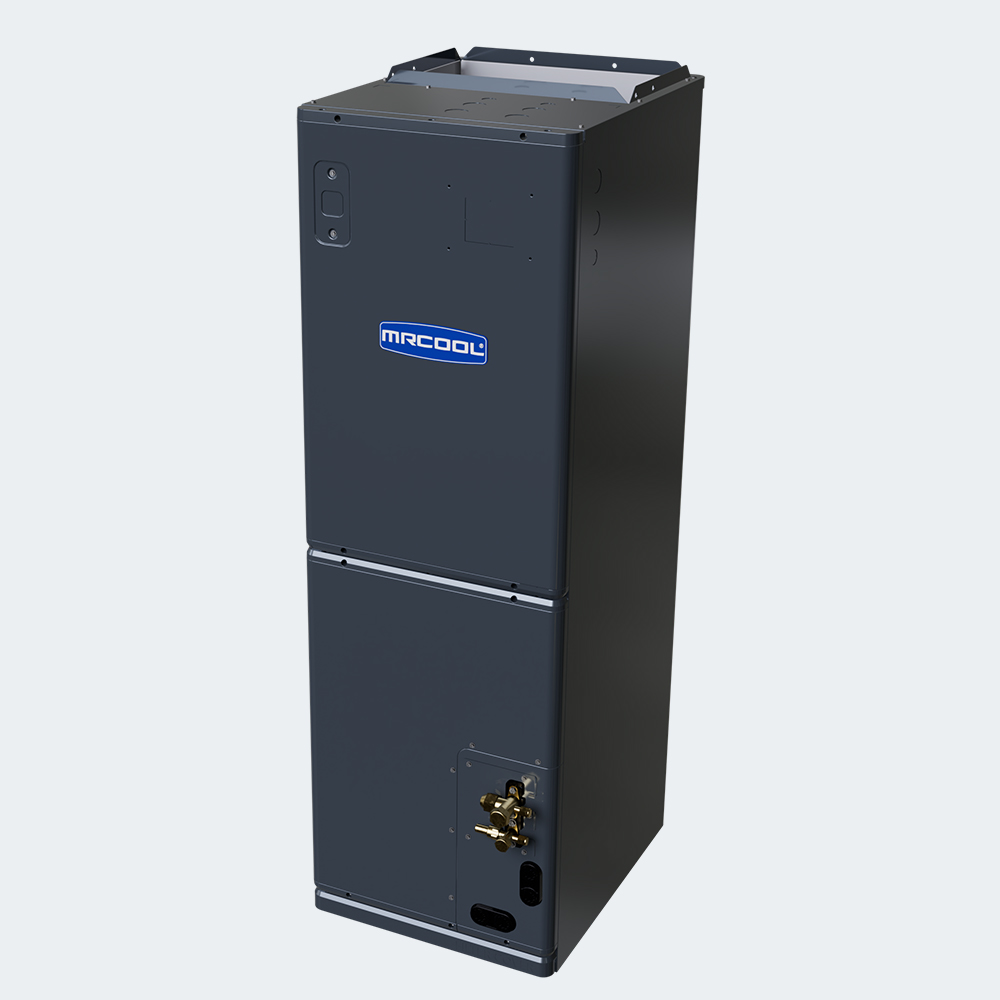

• Universal 24K BTU Air Handler

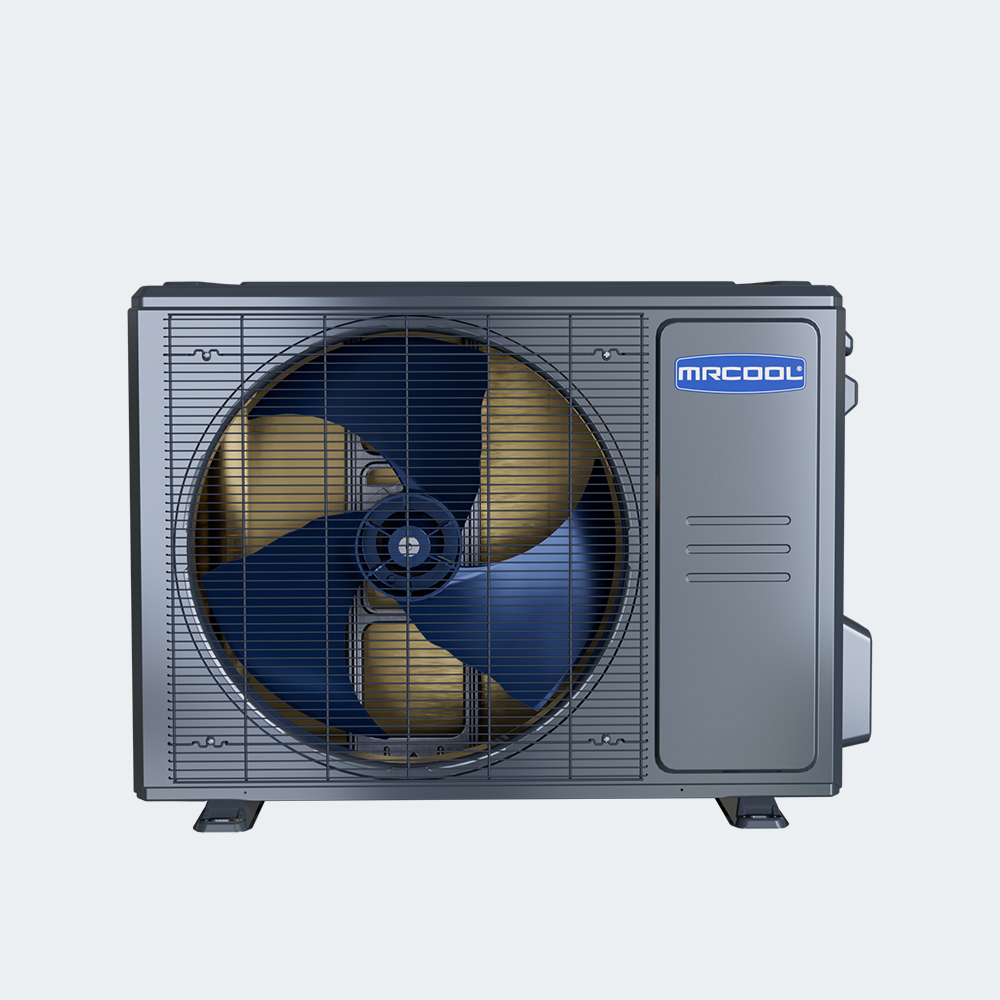

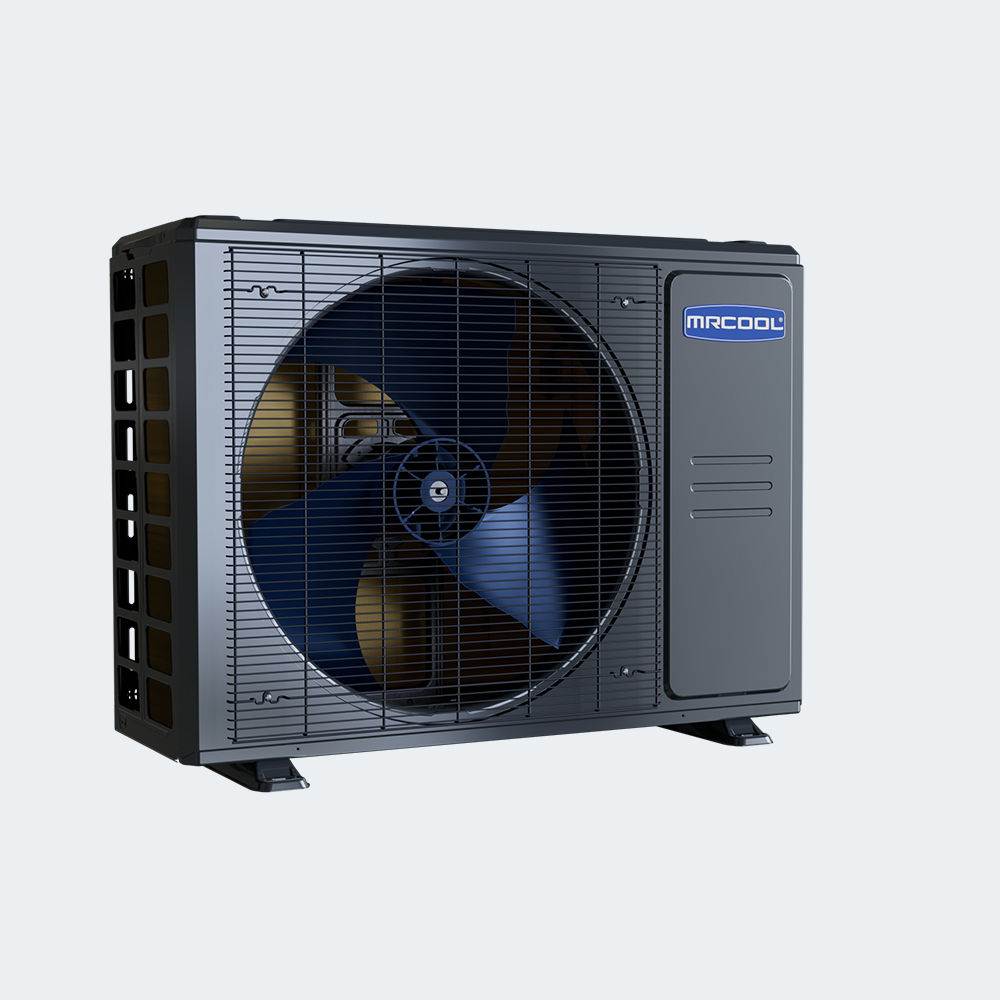

• Universal 24K BTU DC Inverter Heat Pump Condenser

Ideal For

• Whole-home HVAC replacement
• Smaller homes
• Condos and townhomes
• Existing ducted systems
• Attics, closets, and crawlspace installations

Features

• Complete 2-ton air handler and condenser system
• Up to 18.6 SEER2
• 24,000 BTU cooling capacity
• 24,000 BTU heating capacity
• R-454B refrigerant
• DC inverter heat pump technology
• Multi-position air handler installation
• Compatible with NO-VAC® Quick Connect® line sets
• Optional heat kits available
• 10-Year Parts Warranty
• 2-Year Limited Labor Warranty

Key Specifications

• System Capacity: 24,000 BTU
• Tonnage: 2 Ton
• Refrigerant: R-454B
• Voltage: 208/230V condenser, 115/208/230V air handler
• SEER2: Up to 18.6
• HSPF2-4: 10
• HSPF2-5: 8.1
• Max Line Set Length: 164 ft
• Air Handler Filter Size: 12" x 20" x 1"
• Condenser Sound Level: 59 dBA
• Air Handler Sound Level: 33–47.5 dBA

Important Installation Note

This is a central ducted heat pump system intended for use with compatible ductwork. Professional installation is recommended.
