MRCOOL Universal 48K BTU R-454B Heat Pump System (4 Ton)

MRCOOL Universal 48K BTU R-454B Heat Pump System

The MRCOOL Universal 48K BTU R-454B Heat Pump System is a complete 4-ton central HVAC solution designed to deliver reliable whole-home heating and cooling with outstanding energy efficiency. This matched system includes the Universal Series Multi-Position Air Handler and Universal Series DC Inverter Heat Pump Condenser, providing consistent comfort throughout every season while helping reduce energy costs.

Powered by advanced DC inverter technology, the outdoor condenser continuously adjusts compressor speed to match your home's heating and cooling needs. Unlike traditional HVAC systems that constantly cycle on and off, inverter technology delivers quieter operation, improved efficiency, more stable indoor temperatures, and extended equipment life.

The included multi-position air handler supports upflow, downflow, and horizontal installation, making it ideal for new construction or replacement ducted HVAC systems. Compatible with the MRCOOL NO-VAC® Quick Connect® Line Set (sold separately), installation is simplified by eliminating vacuuming and flaring. Optional Universal Series Heat Kits are also available to provide supplemental or emergency heat in colder climates.

Included

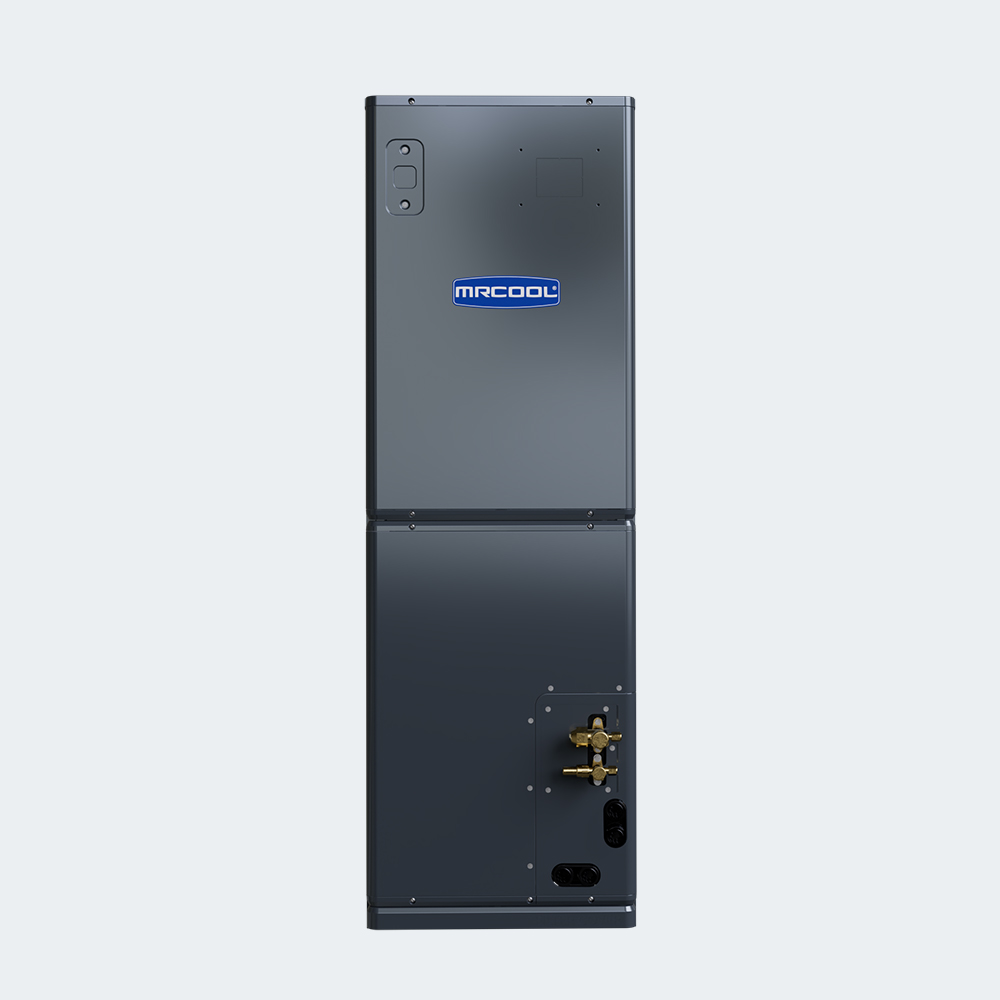

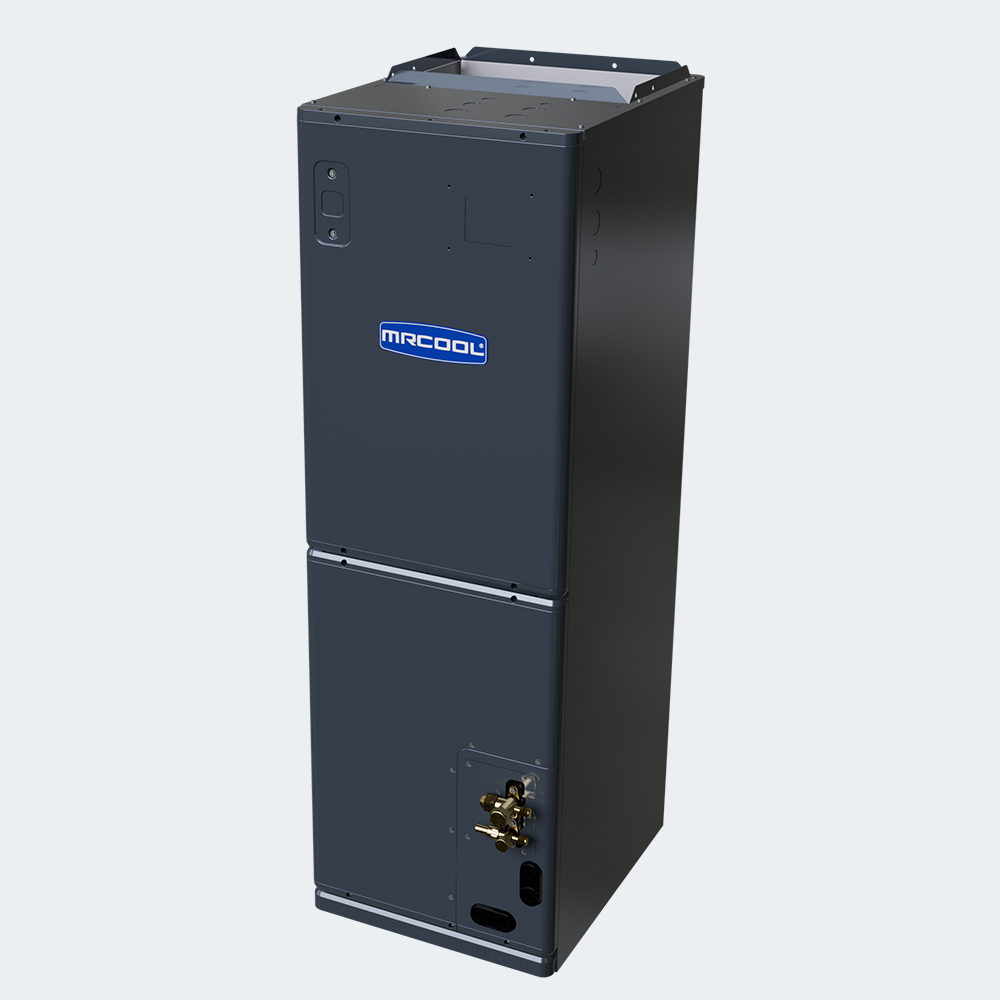

• Universal 48K BTU Air Handler

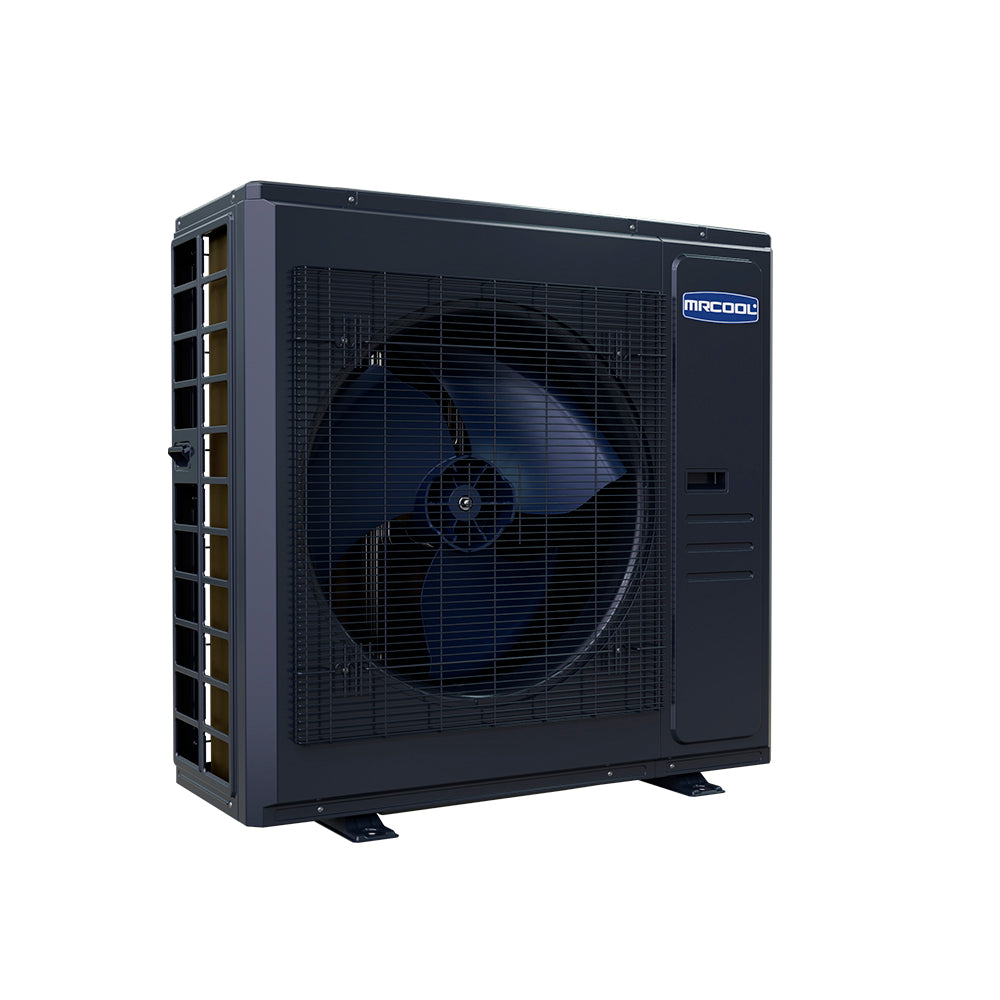

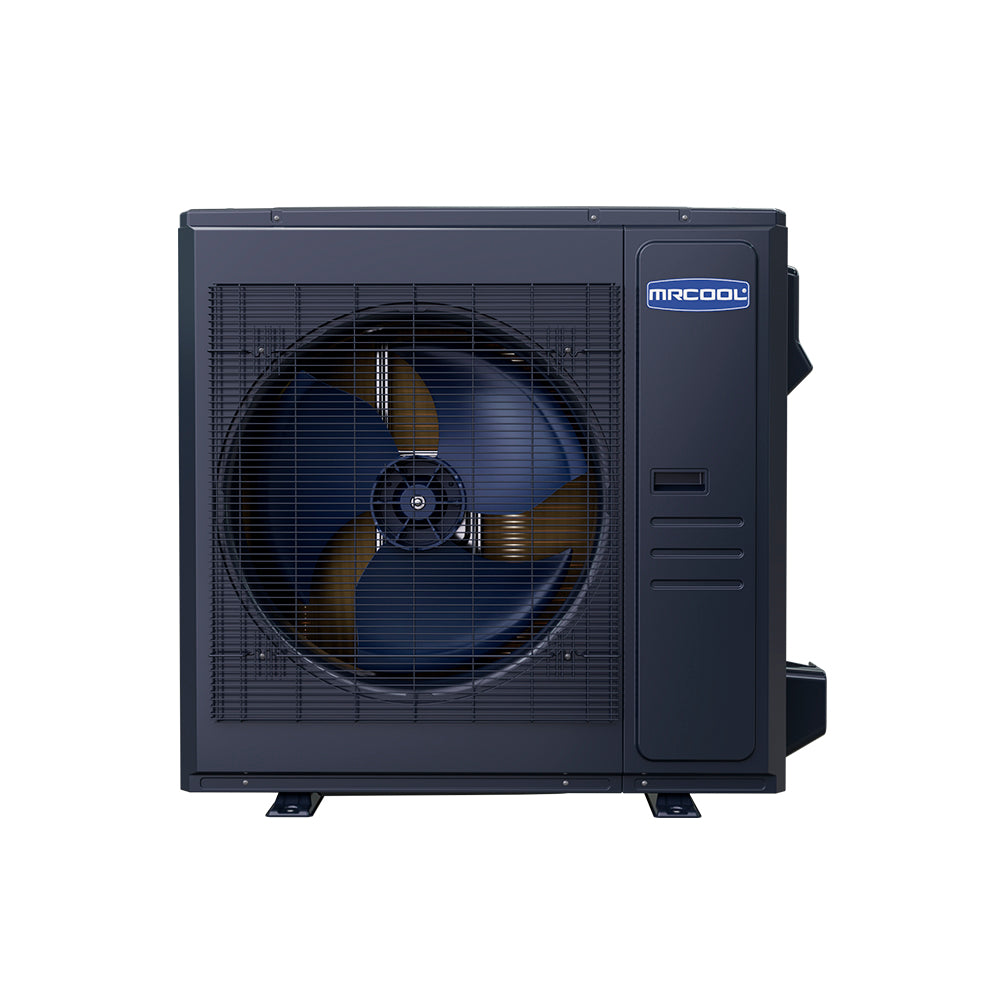

• Universal 48K BTU DC Inverter Heat Pump Condenser

Ideal For

• Large homes
• Whole-home ducted HVAC systems
• HVAC replacements
• New construction
• Residential central heating & cooling

Features

• Complete 4 Ton heating & cooling system
• Up to 17.5 SEER2
• 48,000 BTU Cooling Capacity
• 48,000 BTU Heating Capacity
• DC Inverter Technology
• Multi-position air handler
• Compatible with NO-VAC® Quick Connect® Line Sets
• Optional Electric Heat Kits Available
• Quiet operation
• R-454B Refrigerant
• 10-Year Parts Warranty
• 2-Year Limited Labor Warranty

Key Specifications

• Capacity: 48,000 BTU
• Heating Capacity: 48,000 BTU
• Tonnage: 4 Ton
• Refrigerant: R-454B
• Voltage: 208/230V
• SEER2: Up to 17.5
• HSPF2-4: 9.5
• HSPF2-5: 7.7
• Max Line Set Length: 246 ft
• Air Handler Filter Size: 20" × 20" × 1"
• Condenser Sound Level: 65 dBA
• Air Handler Sound Level: 33.5–53 dBA

Installation Note

This is a complete central ducted heat pump system intended for installation with compatible ductwork. Professional installation is recommended.
