MRCOOL Universal 60K BTU R-454B Heat Pump System (5 Ton)

MRCOOL Universal 60K BTU R-454B Heat Pump System

The MRCOOL Universal 60K BTU R-454B Heat Pump System is a complete 5-ton central HVAC solution built for large homes requiring dependable, energy-efficient heating and cooling year-round. This matched system combines the Universal Series Multi-Position Air Handler with the Universal Series DC Inverter Heat Pump Condenser to provide consistent comfort, quiet operation, and lower energy costs.

Powered by advanced DC inverter technology, the outdoor condenser continuously adjusts compressor speed to match your home's heating and cooling demands. Unlike traditional HVAC systems that frequently cycle on and off, inverter technology delivers quieter performance, greater efficiency, more consistent indoor temperatures, and longer equipment life.

The included multi-position air handler supports upflow, downflow, and horizontal installation, making it ideal for both new construction and replacement ducted HVAC systems. Compatible with the MRCOOL NO-VAC® Quick Connect® Line Set (sold separately), installation is faster and easier by eliminating vacuuming and flaring. Optional Universal Series Heat Kits are available to provide supplemental or emergency heating during colder weather.

Included

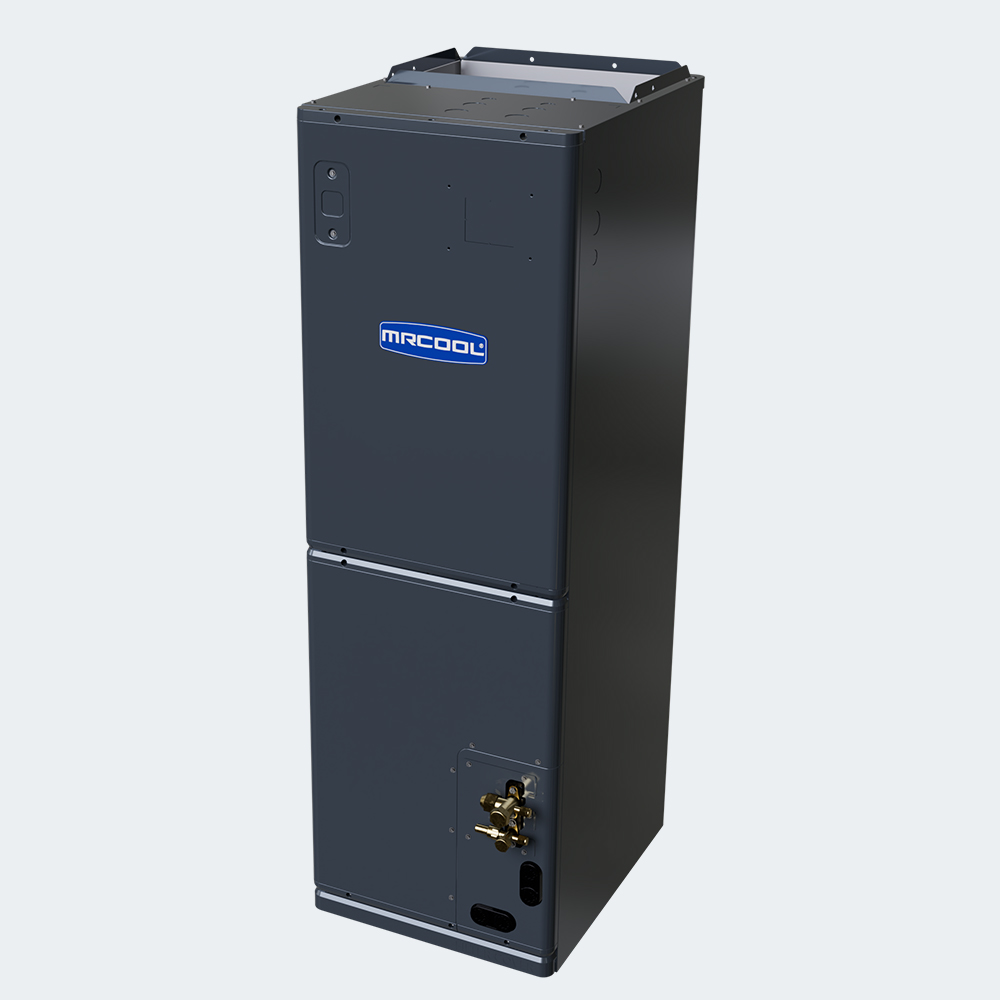

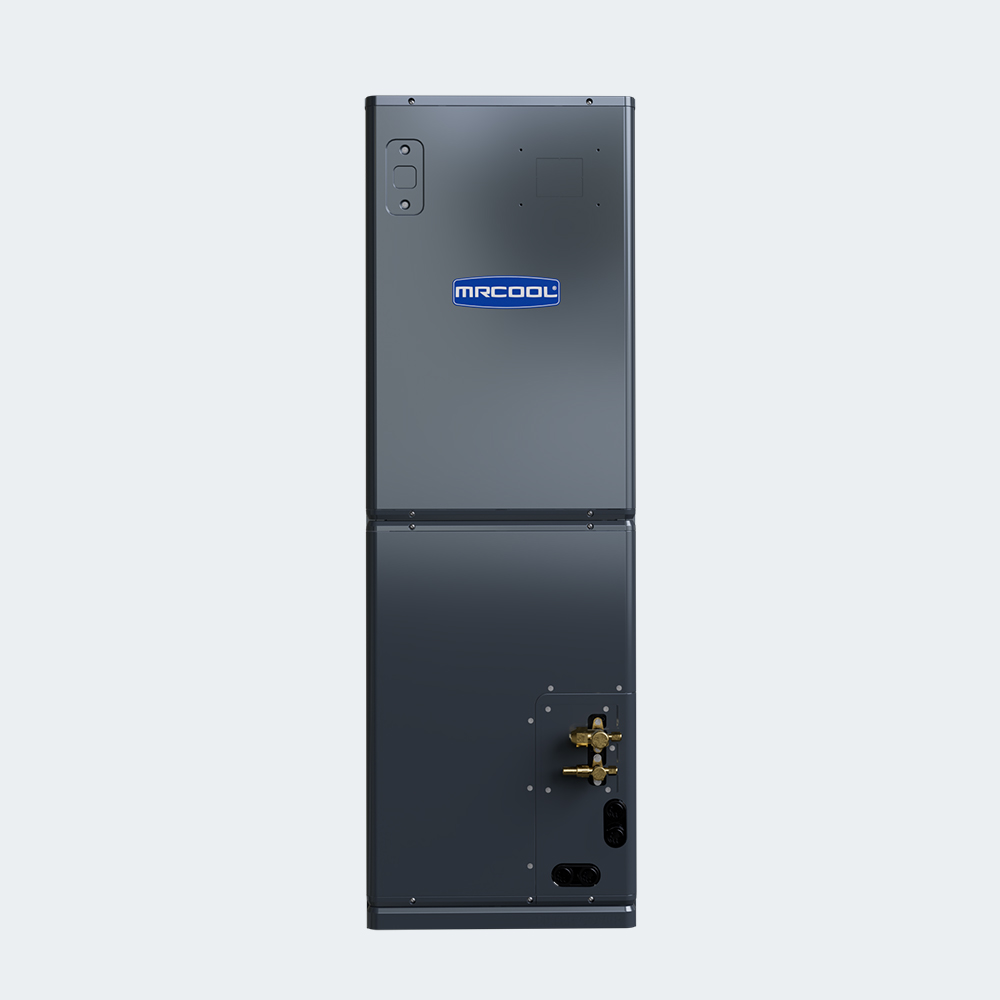

• Universal 60K BTU Air Handler

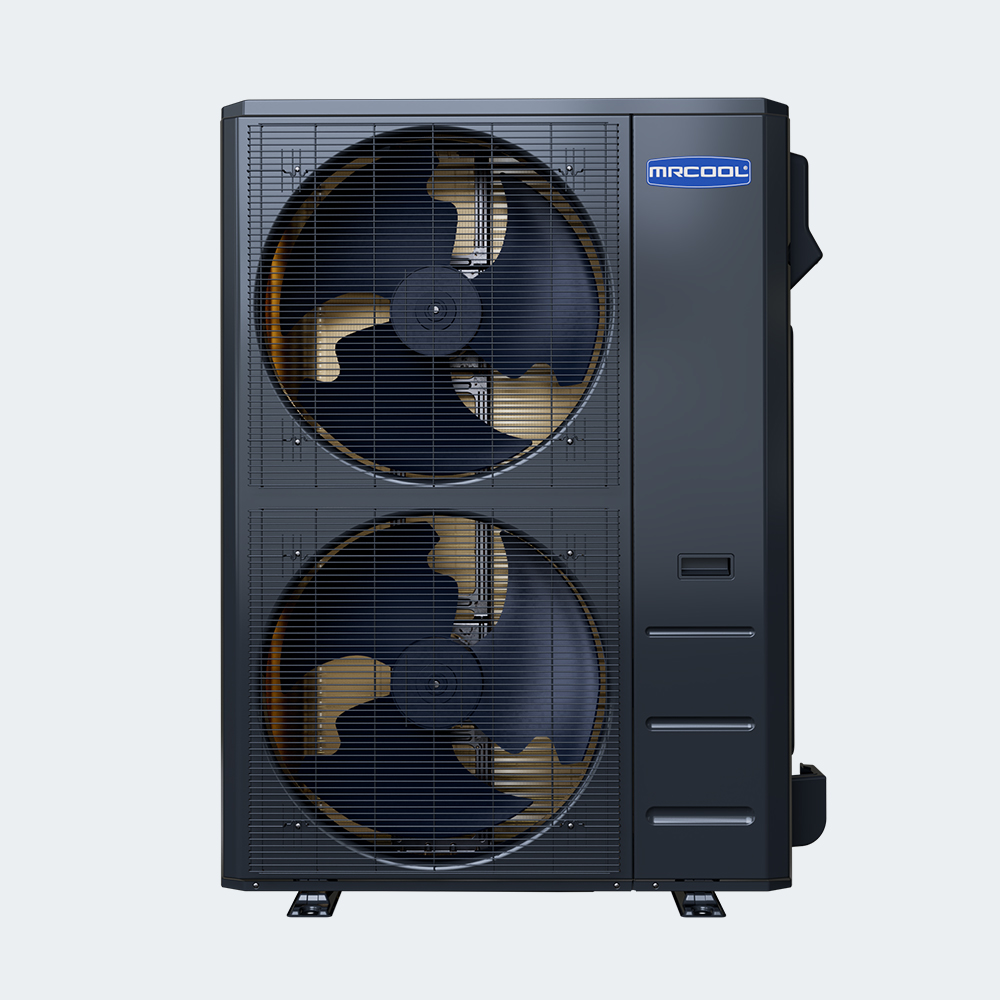

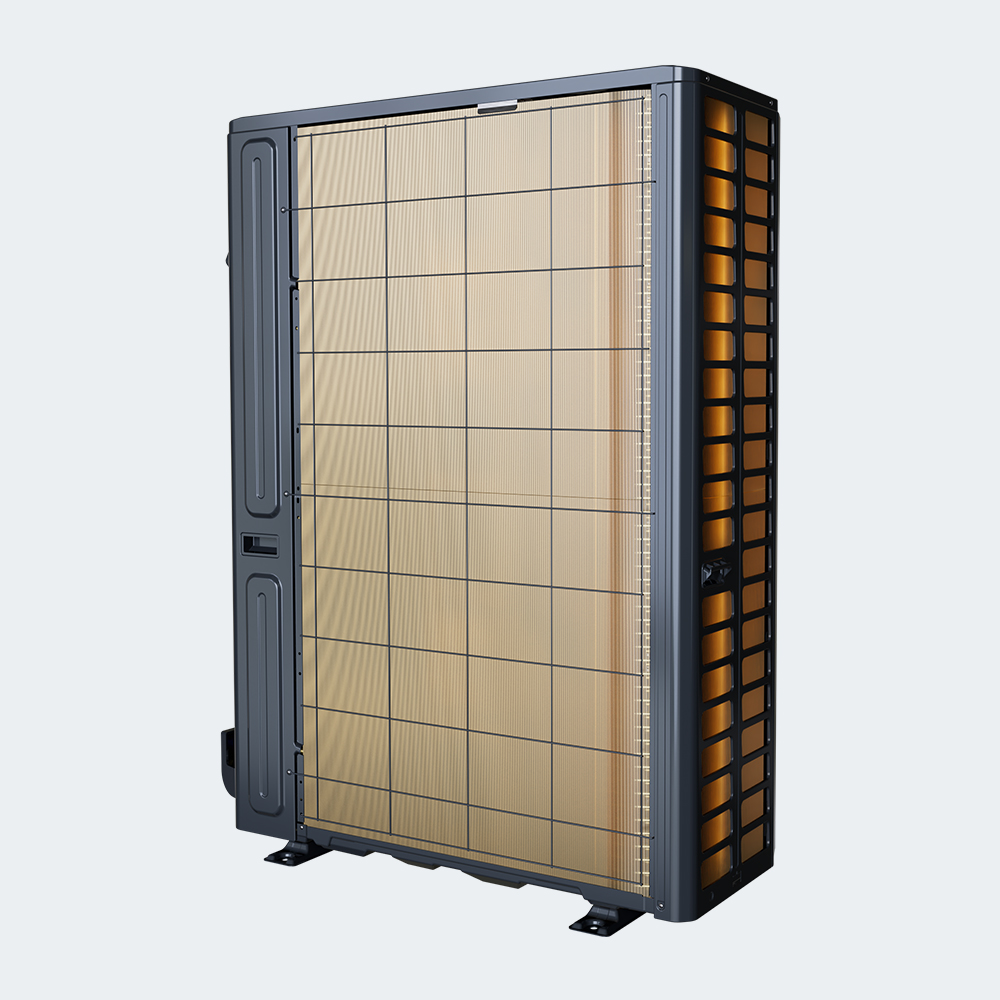

• Universal 60K BTU DC Inverter Heat Pump Condenser

Ideal For

• Large homes
• Whole-home ducted HVAC systems
• HVAC replacements
• New construction
• Residential central heating & cooling

Features

• Complete 5 Ton heating & cooling system
• Up to 17.5 SEER2
• 54,000 BTU Cooling Capacity
• 55,000 BTU Heating Capacity
• DC Inverter Technology
• Multi-position air handler
• Compatible with NO-VAC® Quick Connect® Line Sets
• Optional Electric Heat Kits Available
• Quiet operation
• R-454B Refrigerant
• 10-Year Parts Warranty
• 2-Year Limited Labor Warranty

Key Specifications

• Cooling Capacity: 54,000 BTU
• Heating Capacity: 55,000 BTU
• Tonnage: 5 Ton
• Refrigerant: R-454B
• Voltage: 208/230V
• SEER2: Up to 17.5
• HSPF2-4: 9.5
• HSPF2-5: 7.7
• Max Line Set Length: 246 ft
• Air Handler Filter Size: 20" × 20" × 1"
• Condenser Sound Level: 64.5 dBA
• Air Handler Sound Level: 37–60 dBA

Installation Note

This is a complete central ducted heat pump system intended for installation with compatible ductwork. Professional installation is recommended.
